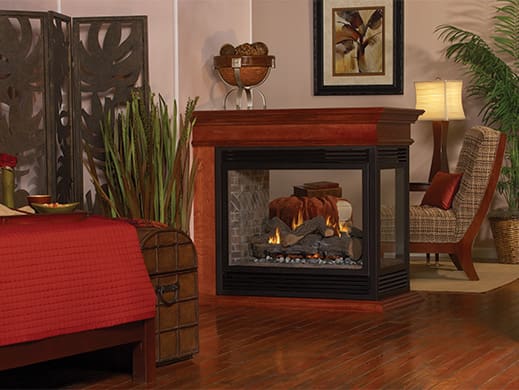

American Hearth – Madison Multi-Sided

Heater Rated at 35,000 Btu input, the Madison Multi-Sided system draws in outdoor air to support combustion and sends its exhaust directly outdoors, and must be located in a position that allows venting through an exterior wall or through the roof. Madison Multi-Sided fireplaces install using readily available 4 x 6 5/8 direct-vent pipe.

Madison Multi-Sided systems include a built-in 24-inch Slope Glaze Vista Burner, large tempered-glass viewing windows, Banded Brick Liner, ceramic fiber floor liner, dimmer controlled lighting, and glowing embers. The 24-inch Rock Creek Log Set and barrier screens must be ordered to complete the fireplace. (Doors are not available for multi-sided fireplaces.)

Technical Details

Madison Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large tempered glass window that provides an unobstructed view to the log set. Choose an optional liner to customize your fireplace.

Madison Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Madison Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

The available lighting kit draws attention to the intricate details in the log set and brick liner ? even when no fire is burning. You can enhance heat distribution with the optional variable-speed blower. Both the light and blower include dimmer controls.

Clean-Face Premium models are available in Millivolt and Intermittent Pilot.

Product Request Quote Form

Name(Required)
Project Type
Project Timeline
Are you also interested in any indoor fire products?
Are you also interested in any outdoor fire products?
Fill out the required measurements for the width, height and depth of your current fireplace. This information helps us provide direction when advising which fire appliance to recommend for your new heating project.
5. Where is the location of your gas line?
What type of gas do you own?
Drop files here or
Max. file size: 128 MB.
    Please take photo from floor to ceiling.
    Drop files here or
    Max. file size: 128 MB.
      Hidden
      Hidden
      This field is for validation purposes and should be left unchanged.

      Additional information

      Brand

      American Hearth

      Product Type

      Fireplace

      Fuel Type

      Gas

      Design Style

      Pier
